- General Information
- Manufacturer
- TP-LINK Technologies Co., Ltd
- Manufacturer Website Address
- http://www.tp-link.com
- Brand Name
- TP-Link
- Product Line
- VIGI
- Product Type
- Network Camera
Human & Vehicle Classification
Intelligently distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
Smart Detection
Intrusion Detection
Line-Crossing Detection
Object Removal Detection
Object Abandoned Detection
Scene Change Detection
Region Entering Detection
Region Exiting Detection
Loitering Detection
Abnormal Sound Detection
VIGI Surveillance Solution
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business that you've worked hard to build-whenever, wherever.
Outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.
Flexible Installation
Easily route your camera's cable into a dropped ceiling or avoid drilling by slotting it through the camera's side outlet.
- Technical Information
- HD Recording
- Yes
- Night Vision
- Yes
- Night Vision Distance
- 60 ft (18.29 m)
- Night Vision Type
- Infrared
- Number of IR LEDs
- 4
- Infrared (IR) Cut-off Filter
- Yes
- Wide Dynamic Range Detail
- 120 dB
- Display & Graphics
- Image Sensor Type
- CMOS
- Image Sensor Size
- 1/2.9"
- Color Supported
- Color
- Field of View
- Horizontal FOV: 29.6°-102.0°, Vertical FOV: 16.8°-53.8°, Diagonal FOV: 34.1°-122.8°
- Effective Camera Resolution
- 4 Megapixel
- Video
- Video Formats
- H.265+
- H.265
- H.264
- H.264+
- H.264H
- H.265M
- Maximum Video Resolution
- 2688 x 1520
- Maximum Frame Rate
- 30 fps
- Audio
- Audio Support
- Yes
- Lens
- Lens Type
- Varifocal
- Minimum Focal Length
- 2.7 mm (0.11")
- Maximum Focal Length
- 13.5 mm (0.53")
- Lens Included
- Yes
- Lens Mount Type
- Φ14
- Maximum Aperture
- f/1.6
- Optical Zoom
- 5x
- Exposure
- Shortest Shutter Speed
- 1/10000 Second
- Longest Shutter Speed
- 1/3 Second
- Network & Communication
- Connectivity Technology
- Wired
- Ethernet Technology
- Fast Ethernet
- Protocols
- TCP/IP
- UDP
- ICMP
- HTTP
- HTTPS
- DHCP
- DNS
- RTSP
- NTP
- UPnP
- SSL/TLS
- FTP
- SFTP
- RTP
- IPv4
- IPv6
- ARP
- ONVIF
- Digest Authentication
- Remote Management
- Yes
- Storage
- Storage Type
- Memory Card
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Power Description
- Maximum Power Consumption
- 12 W
- Input Voltage
- 12 V DC
- Power Source Type
- DC
- PoE
- Physical Characteristics
- Mount Type
- Wall Mount
- Ceiling Mount
- Form Factor
- Dome
- Durability
- Weather Proof
- Vandal Proof
- Product Material
- Metal
- Diameter
- 5.10" (129.54 mm)
- Weight (Approximate)
- 1.70 lb (770 g)
- Environmental Conditions
- Minimum Operating Temperature
- -22°F (-30°C)
- Maximum Operating Temperature
- 140°F (60°C)
- Minimum Storage Temperature
- -40°F (-40°C)
- Maximum Storage Temperature
- 140°F (60°C)
- Maximum Operating Humidity (Non-condensing)
- 95%
- Maximum Storage Humidity (Non-condensing)
- 95%
- Miscellaneous
- Features
- Alarm Triggering
- Vehicle Detection
- Human Detection
- Wide Dynamic Range
- 3D Digital Noise Reduction
- Noise Reduction
- White Balance
- Built-in Microphone
- Day/Night
- Mirror
- Ingress Protection
- SD Card Local Storage
- Package Contents

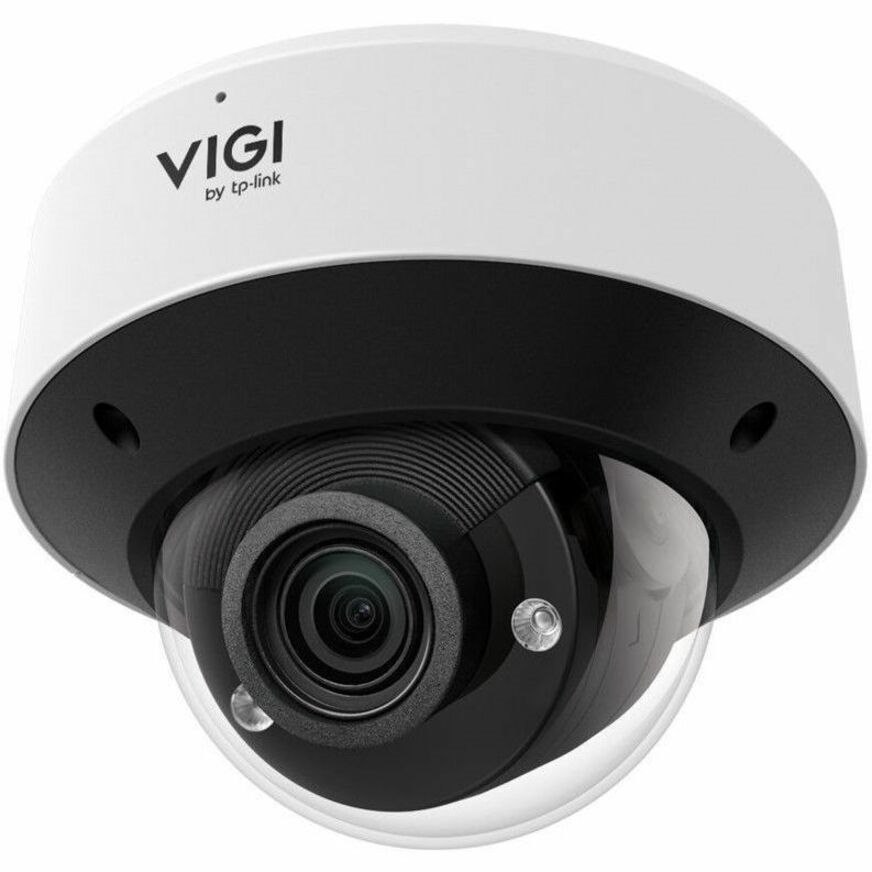

- VIGI InSight S245ZI Network Camera
- Quick Start Guide
- Waterproof Cable Attachments
- Mounting Accessories
- Impact Protection Rating
- IK10
- Ingress Protection Rating
- IP67
