Easier management and maintenance of end devices and networks

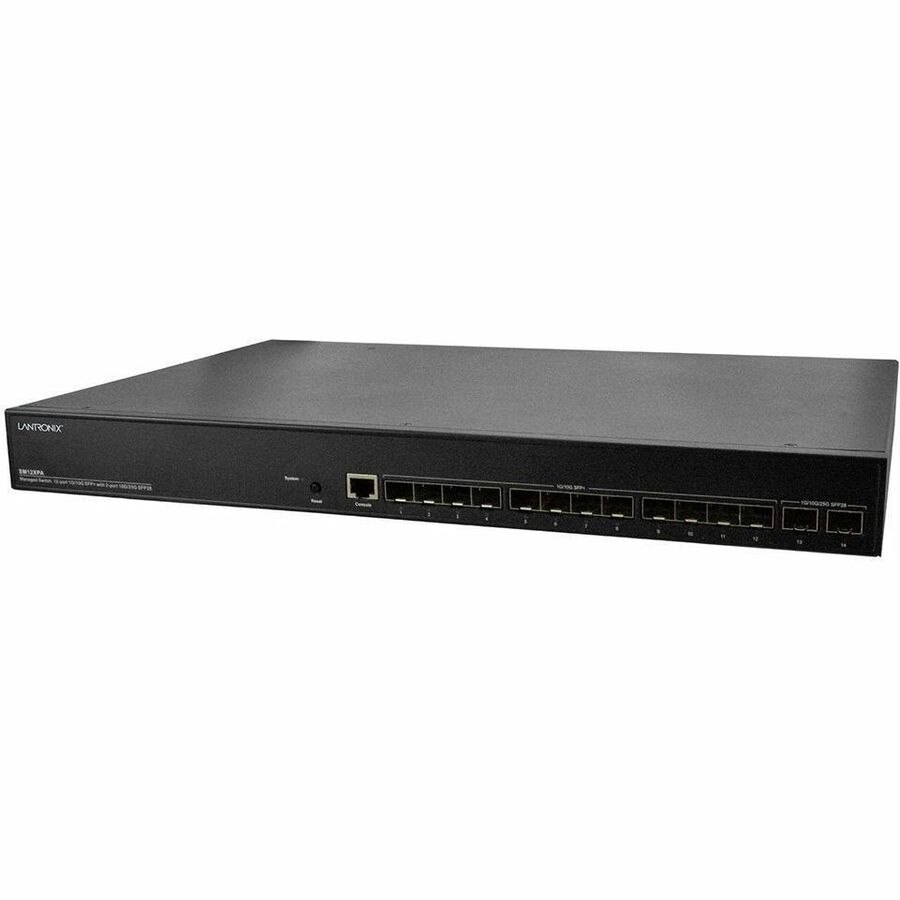

The SM12XPA Fiber Aggregation Switch is a managed Layer 3 (L3) Multi-Gigabit Ethernet fiber switch offering powerful Layer 2 and basic Layer 3 features for improved functionality.
Move More Data: Reduce Backbone InfrastructureThe SM12XPA switch provides 340 Gbps switching capacity with (12) 1G/10G SFP+ and (2) 1G/10G/25G SFP28 slots and (1) RJ-45 console port. It offers high performance and reliability for high bandwidth aggregation and access network applications. The 10G and 25G SFP links provide the necessary backbone capacity to meet the high traffic needs of modern connected access switches.
Rapid Network ConversionHigh performance IP unicast routing using OSPF and RIP enables devices to dynamically learn and exchange routing information for rapid network convergence. This improves efficiency and productivity.
Smart Device ManagementThe embedded Device Managed System (DMS) software is easy to use and simplifies configuration, installation, and troubleshooting of devices in applications with high fiber density. The SM12XPA offers an improved user experience, and lowers operating and maintenance costs.
Security and Seamless IntegrationA RESTful API is available for integrating and managing the switch through third-party tools. It also supports enhanced security features such as IP source guard and Access Control Lists to guard networks against unauthorized access.
- General Information
- Manufacturer
- Lantronix, Inc
- Manufacturer Website Address
- http://www.lantronix.com
- Brand Name
- Lantronix
- Product Series
- SM12XPA
- Product Type
- Layer 3 Switch
- Warranty
- Limited Warranty
- Lifetime
- Technical Information
- Features
- Hot-swappable
- Interfaces/Ports
- Stack Port
- No
- Port/Expansion Slot Details
- 12 x 10 Gigabit Ethernet SFP+
- 2 x 25 Gigabit Ethernet SFP28
- Media & Performance
- Media Type Supported
- Optical Fiber
- Twisted Pair
- Ethernet Technology
- 25 Gigabit Ethernet
- Network Technology
- 10GBase-X
- 1000Base-X
- 25GBase-X
- I/O Expansions
- Total Number of Expansion Slots
- 14.0
- Expansion Slot Type
- SFP+
- SFP28
- Shared SFP Slot
- No
- Number of SFP Slots
- 2
- Network & Communication
- Layer Supported
- 4
- Networking Standards
- IEEE 802.3
- IEEE 802.1D
- IEEE 802.1ad
- IEEE 802.1x
- Management & Protocols
- Manageable
- Yes
- Power Description
- Input Voltage
- 230 V AC
- 120 V AC
- Frequency
- 50 Hz
- 60 Hz
- Power Source
- Power Supply
- Number of Power Supplies Supported
- 1
- Physical Characteristics
- Height
- 1.7"
- Width
- 17.4"
- Depth
- 11.8"
- Weight (Approximate)
- 8.45 lb
- Miscellaneous
- Package Contents
- SM12XPA Layer 3 Switch
- Power Cord North America
- Application/Usage
- Network
- Enterprise
- Security
- Surveillance
- Environmentally Friendly
- Yes
- Environmental Compliance
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
