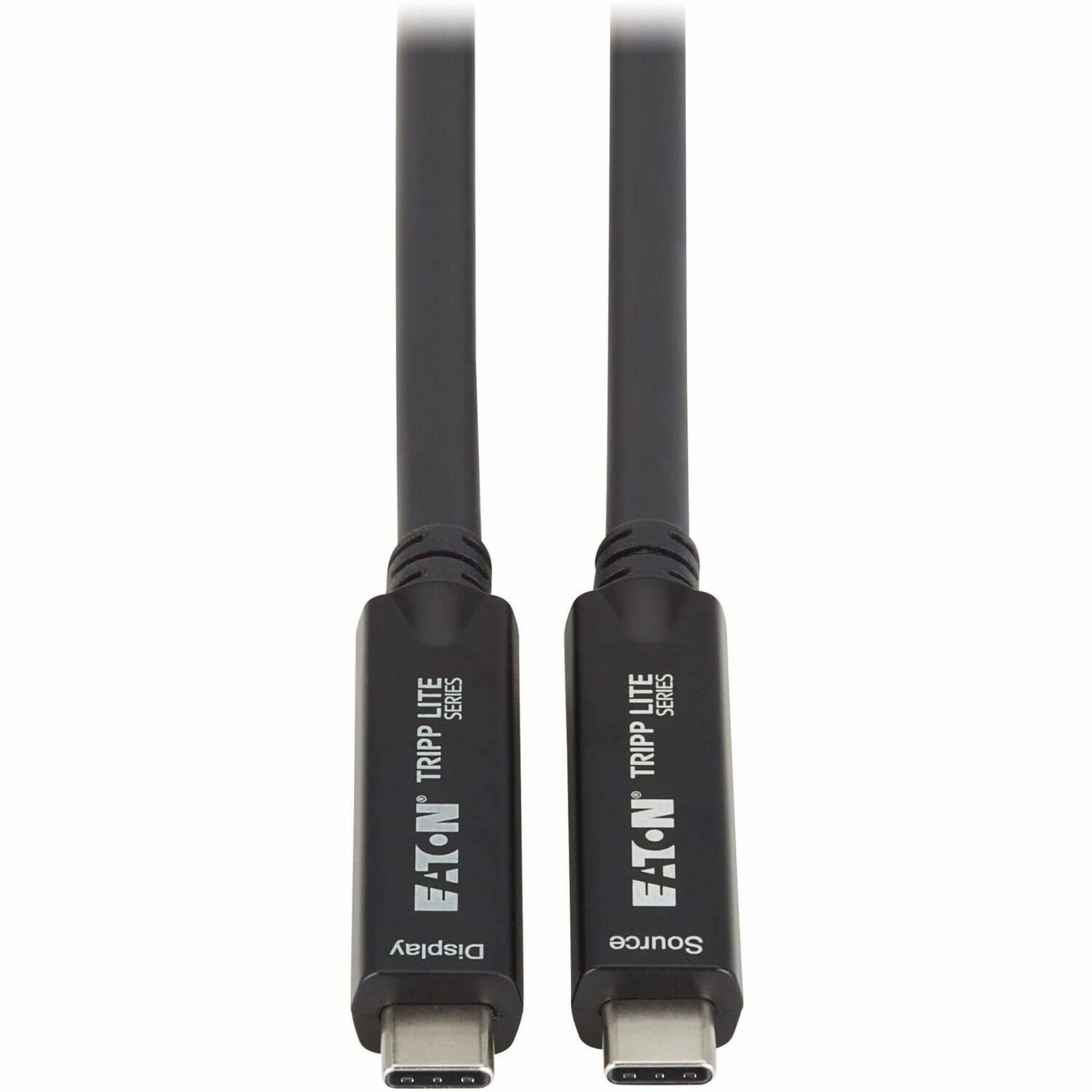

USB-C Fiber Optic Cable Combines Data Transfer and 8K/4K Video
This full-function active optical cable (M/M) securely connects the USB-C, Thunderbolt 3 or Thunderbolt 4 port on your desktop, laptop or notebook computer to a USB-C data or audio/video device, such as a storage device, media server or surveillance camera, located up to 7.5 meters (24.6 feet) away. It is ideal for high-end video conferencing, USB camera placement, 3D printers or high-resolution Pro AV devices, such as touchscreen displays, digital signage or travel displays that can be powered via USB-C PD charging.
Supports USB-C DisplayPort Alternate Mode for Converting Audio/Video Signals
By connecting the USB-C end to a source device that supports USB DisplayPort Alt Mode, you can output 8K/4K video and digital audio to a USB-C monitor, television or projector without installing special software drivers.
Transmits 8K and 4K Video with HDR and 4:4:4 Color
The U420F-7P5M supports Ultra HD 8K resolutions up to 7680 x 4320 at 60 Hz and 4K resolutions up to 3840 x 2160 at 144 Hz with 30-bit Deep Color. It also supports HDR (High Dynamic Range), providing a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your display. HDCP 2.2 encryption allows you to stream 4K content with no loss in resolution. This cable also supports uncompressed 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.
Transfers Data and Powers Devices for Innovative Workspace Applications
The full-function U420F-7P5M connects your MacBook Pro, Windows laptop or other USB-C device to the USB-C port on Logitech or Poly video conferencing cameras, touchscreen displays and smartboards. It supports USB 3.2 Gen 2 data transfer rates up to 10 Gbps. It also provides power output up to 20V 3A (60W), which is enough to power most laptops, as well as connected equipment or travel displays. The plug-and-play cable is compatible with Thunderbolt 3 and Thunderbolt 4 devices, as well as USB-C.
- General Information
- Manufacturer
- Eaton Corporation
- Manufacturer Website Address
- http://www.eaton.com
- Brand Name
- Tripp Lite series
- Product Type
- Data Transfer Cable
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- Cable Type
- Fiber Optic
- Cable Length
- 24.61 ft
- Connector Type on First End
- USB 3.2 (Gen 2) Type C - Male
- Connector Gender on First End
- Male
- Connector on First End Details
- 1 x USB 3.2 (Gen 2) Type C - Male
- Connector Type on Second End
- USB 3.2 (Gen 2) Type C - Male
- Connector Gender on Second End
- Male
- Connector on Second End Details
- 1 x USB 3.2 (Gen 2) Type C - Male
- Connector Plating
- Gold
- Contact Plating
- Gold
- Jacket Type
- VW-1
- Device Supported
- Notebook
- Tablet
- Smartphone
- Gaming Console
- Desktop Computer
- Computer
- Storage Device
- Media Server
- Surveillance Camera
- Printer
- Digital Signage
- HDTV Set-top Boxes
- Monitor
- Television
- Projector
- MacBook Pro
- USB Device
- Video Conferencing Camera
- American Wire Gauge
- 21/24/28 AWG
- Data Transfer Rate
- 10 Gbit/s
- Supported Resolution
- 3840 x 4320
- 7680 x 2160
- Features
- AOC Technology
- Charging
- HDR Support
- Extended Display Identification Data (EDID)
- Display Stream Compression (DSC)
- DisplayPort Alternate (ALT) Mode
- Consumer Electronics Control (CEC)
- HDCP 2.2
- Plug & Play
- USB- Power Delivery (USB PD)
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Jacket Color
- Black
- Connector Color
- Black
- Product Material
- Thermoplastic Elastomer (TPE)
- Jacket Material
- Thermoplastic Elastomer (TPE)
- Miscellaneous
- Application/Usage
- Gaming
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
