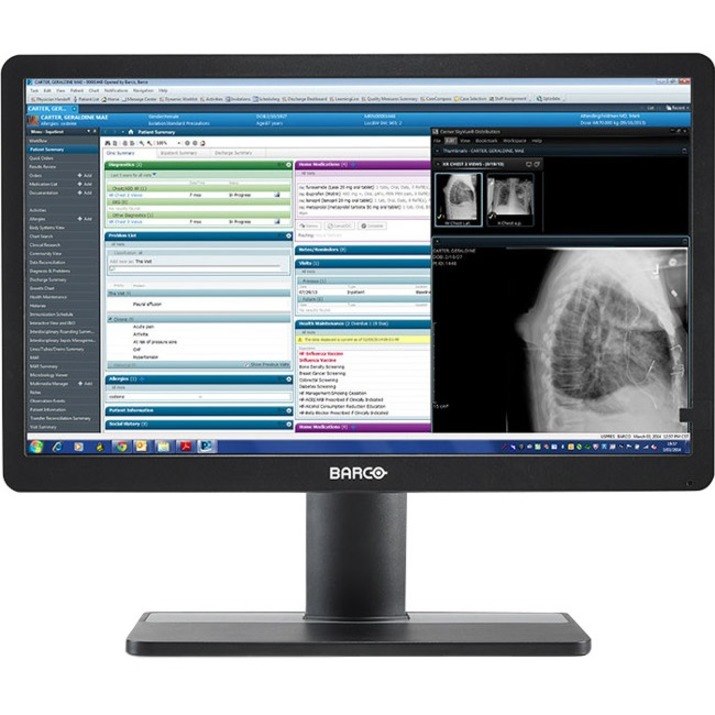

Eonis® is a 22" display built with healthcare specialists in mind. It combines consistent, high image quality and an attractive, versatile design with networked quality assurance.
High image quality
Eonis presents sharp, bright images. The display's unique front consistency sensor automatically aligns the image quality every time the display is switched on. The image consistency makes collaboration between specialists easier. They can discuss images with colleagues at multiple locations, knowing that everyone is seeing identical images.
Centralized quality assurance
Eonis displays come with Barco's cloud-based MediCal QAWeb software, an online service for automated calibration, Quality Assurance and asset management. Praised in hospitals around the world, MediCal QAWeb allows healthcare IT and PACS administrators to centrally and remotely manage image quality across the healthcare organization, at the click of a button.
Smart design, fit for purpose
Barco's Eonis display features multiple mounting options and connections. The user-friendly height, tilt and pivot adjustments of the base allow the monitor to be positioned for maximum comfort to help ease the physical strains of a long work day.
- General Information
- Manufacturer
- Barco
- Manufacturer Website Address
- http://www.barco.com
- Brand Name
- Barco
- Product Line
- Eonis
- Product Type
- LCD Monitor
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- Number of Screens
- 1
- Screen Size Class
- 22"
- Viewable Screen Size
- 21.5"
- Screen Mode
- Full HD
- Response Time
- 7.50 ms
- Aspect Ratio
- 16:9
- Pixel Pitch
- 0.24800 mm x 0.24800 mm
- Backlight Technology
- LED
- Video
- Maximum Resolution
- 1920 x 1080
- Color Supported
- 1.07 Billion Colors
- Contrast Ratio
- 1,000:1
- Brightness
- 300 Nit
- Interfaces/Ports
- DVI
- Yes
- USB
- Yes
- DisplayPort
- Yes
- Built-in Devices
- Built-in Devices
- USB Hub
- Power Description
- Operating Power Consumption
- 20 W
- Physical Characteristics
- VESA Mount Compatible
- Yes
- VESA Mount Standard
- 100 x 100
- Color Family
- Black
- Color
- Black
- Height
- 12.4"
- Width
- 20.2"
- Depth
- 2.6"
- Height with Stand
- 19.61"
- Width with Stand
- 20.24"
- Depth with Stand
- 7.91"
- Weight (Approximate)
- 7.28 lb
- Weight with Stand (Approximate)
- 12.35 lb
- Miscellaneous
- Package Contents
- Eonis MDRC-2222 Option BL Widescreen LCD Monitor
- User guide
- System disc
- DisplayPort cable
- USB cable
- AC mains cable
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- China Restriction of Hazardous Substances (China RoHS)
